DANA STEEL PROCESSING INDUSTRY L.L.C.(UAE) DANA STEELS Pvt. Ltd.(INDIA)

Cable Management System Manufacturing Division

“DANA STEEL PROCESSING INDUSTRY LLC(UAE)” & “DANA STEELS Pvt LTD(INDIA)”are quality manufacturers of multidiscipline cable support systems in the middle east & asia region. With Headquarters in Dubai & manufacturing facilities in Dubai,Ajman,Uaq(UAE) & Bhiwadi(NCR-INDIA), it is a key player in the region.DANA is recognized with the high quality and professional services provided and our trays are manufactured conforming to IEC 61537, BS EN 61537 , NEMA VE 1 and they conform to safe installation guidelines of NEMA VE 2 , BS 7671 : 2001, NFPA 70.

The main product lines DANA offer include various types of cable tray, troughs, U channels, strut supports, cable ladder systems, cable trunking along with all accessories & covers. We cater to all offshore, marine, onshore, industrial, power plants, petrochemical complex , hydrocarbon processing plants, infrastructure, bridges, substation, pipelines, hospitals, commercial towers etc.

We have a proven track record of supplying to prestigious oil & gas projects in the middle east including high-end clients like BOROUGE I,GASCO,TAKREER,PDO,QP,ENI,ENPPI,BOROUGE III,ADCO,SAIPEM,TOTAL,ADNOC,DEWA,FEWA,ADDC,HYUNDAI,SAMSUNG just to name a few.

Our various value-added steel products are proudly exported to are Qatar(Doha), SaudiArabia(Dammam,Jeddah,Riyadh,Dahran,Jubail,Yanbu), Kuwait,Bahrain(Manama),Oman(Muscat,Sohar,Seeb), Nigeria, Kenya, Uganda, Mauritius,Africa, Morocco, Algeria,  Jordan, Burundi, Comoros, Djibouti, Ethiopia, Kenya, Madagascar, Mauritius, Rwanda, Seychelles, Somalia, Tanzania Rep and Uganda. Besides the above,we also have a strong marker presence in the West African Region:: Sierra Leone/Gambia/Senegal/Ghana/Mauritania/Chad/Liberia/Sao Tome/Congo and the South African Region :: South Africa/Mozambique/Malawi/Zimbabwe/Zambia/Angola/Dr Congo.

We manufacture Our Cable Management System in the below Material finishes :-

  • Pre-galvanized steel or hot dip galvanized steel before fabrication (HDGBF) as per BS EN 10327: 2004, (which supersedes BS EN 10142: 2000)
  • Hot dip Galvanized after fabrication (HDGAF) as per BS EN 1461 or ASTM A123
  • Epoxy polyester Powder coating or Wet Painting to any RAL Colour
  • Aluminium as per Alloy 5052 or as required
  • Stainless Steel as per AISI 304 and AIS 316L or as required

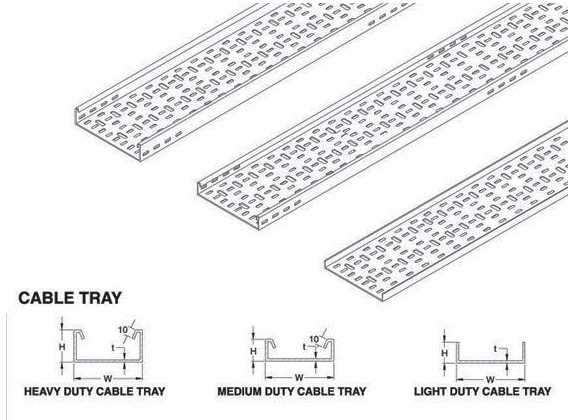

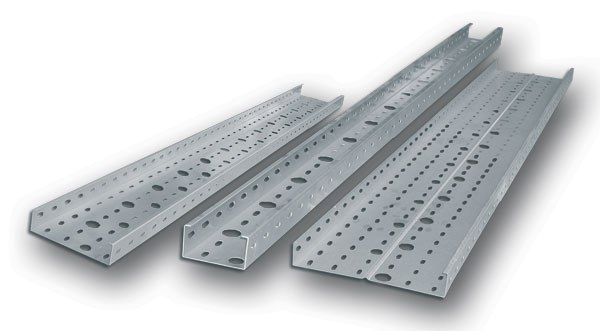

DANA PERFORATED CABLE TRAYS,TROUGHS & FITTINGS

DANA Trays bring forth the best in traditional cable management solutions available in:-

  • Light Duty Straight Flange Perforated Cable Trays
  • Medium Duty Return Flange Perforated Cable Trays
  • Heavy Duty Return Flange Perforated Cable Trays

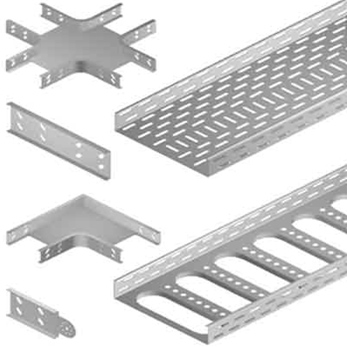

  • Variety of Tray Accessories & Fittings [Elbows,bends,Risers, etc]
  • DANA Strut Channels & Support systems

DANA CABLE TRUNKING & ACCESSORIES

DANA Trunkings are manufactured from Pre-galvanized sheet steel to BS EN 10327: 2004, (which supersedes BS EN 10142: 2000), and cable Trunking steel surface according to BS EN 50085-1:2005 (which supersedes BS4678-1) with smooth Jet locks , and screw “removable covers”.

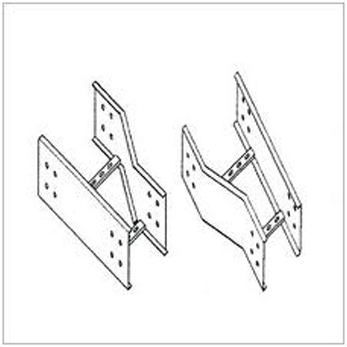

DANA CABLE LADDERS & ACCESSORIES

DANA Ladders are specially designed to client specifications.

  • Width:- Available from 75 mm to 1500 mm
  • Side walls:- Available from 40 mm to 150 mm
  • Rungs :- Avaliable at intervals of 30m to 75mm

DOWNLOAD PDF CATALOGS
