SOLVENT NAPHTHA 100 AND 150

DANA Lubricants Factory LLC (DANA LUBES) is a UAE based leading quality Manufacturer, Exporter, and Supplier of Automotive, Industrial, and Marine Lubricant Oils. We export various solvents like solvent naphtha and petrochemical products from multinational companies to local manufacturers by adhering to international quality standards. We supply from Jebel Ali, Dubai, United Arab Emirates, and export to more than 70 countries worldwide. such countries are Europe, Asia, Africa, South & Central America, Australia, GCC (Arab Countries). In India, we supply to Chennai port, Mundra port, and Kandla port in Gujarat.

What We Supply With Solvent Naphtha

Most Common Products
Naphtha Fuel Oil -180 CST
Solvent Naphtha (Ex, 100, 150) Fuel Oil- 380 CST
Low Aromatic White Spirit (LAWS) Gas Oil – Diesel
Mineral Turpentine Oil (MTO) Kerosene Oil
Heavy Aromatics Oil & Lubricants
White Mineral Oil (White Oil) Slack Wax
Base Oil (Ex, SN 70 Group 1, N70 Group 2) Bitumen Pen. Grade 60-70
Toluene Bitumen  Vis. Grade VG-30
Xylene Glycols
Hexane Rubber Process Oil

Properties of Solvent Naphtha and Common Solvents

Solvents Flash Point C Boiling Point C
Extremely Flammable
Acetaldehyde -40 20
Diethyl ether -40 35
Dimethyl ether -41 -24
n-Pentane -49 97
Petroleum spirit BP 30 -51 30
Petroleum spirit BP 40 -40 40
Highly Flammable
Acetone -17 56
Acetonitrile, 2
Benzene -11 80
Butanone -3 79
Carbon disulfide -30 46
Cyclohexane -18 81
1,2-dichloroethane 13
Dioxane (1,4) 12
Ethyl acetate -3 77
Heptane -4 93
Hexane -26 50
Methanol 11
Petroleum spirit BP 60 -30 60
Petroleum spirit BP 80 -4 80
Petroleum spirit BP 10 2 100
Piperidine 16
Propane-2-ol 12
Pyridine 20
Tetrahydrofuran -17 66
Toluene 4
Triethylamine -15 89
Flammable
1 butanol 35
2 butanol 27
Propane-1-ol 22
Xylene 25
Non-Flammable
Chloroform
Dimethyl Sulphoxide
Dimethyl Formamide

Technical Datasheets of High Flash Naphtha Solvents

Solvent Naphtha 100

The alternate name of solvent naphtha 100 is Solvent Naphtha c9. It is a colorless non-viscous liquid. It has a strong aromatic odor and is not soluble in water, but in aromatic solvents.

Composition

C9 aromatic naphtha typically contains 1, 2,4-trimethyl benzene at 20-45%, 1,3,5 trimethyl benzene at 8-15%, mixed ethyltoluenes at 25-35%, and 90% C9 aromatic hydrocarbons.

Applications

This solvent naphtha is used as a softener, carrier components, paints, varnishes, additivities, agrochemicals, coating, etc.

Typical Properties Datasheet

Property Unit Minimum Value Maximum Value Typical Value Test Method
Distillation Range

–  Initial Boiling Point

–  Dry Point



°C

°C



158

170



165

180



161

175



ASTM D 86

ASTM D 86

Flash Point °C 43 49 46 ASTM D 93
Mixed Aniline Point °C 12 14 13 ASTM D 611
Aromatic Content Wt% 99.0 99.0 GC
Appearance Clear colorless free from foreign particles Visual
Color APHA +30
Specific Gravity @ 15°C 0.870 0.885 0.88 ASTM D 4052



Solvent Naphtha 150

The alternate name of solvent naphtha 150 is Solvent Naphtha c10. It is a colorless non-viscous liquid. It has a strong aromatic odor and is not soluble in water, but in aromatic solvents.

Composition

It belongs to the petroleum hydrocarbon family. It consists predominately of C9-C11 aromatic hydrocarbons, predominately C10.

Applications

Solvent Naphtha 150 is used in the paint and coating industry. It is also used in resin greases, metallic paints, varnishes, agrochemicals, and wood paints.

Solvent Naphtha – Typical Properties Datasheet

Property Unit Minimum Value Maximum Value Typical Value Test Method
Distillation Range

–  Initial Boiling Point

–  Dry Point



°C

°C



180

215



185

220



180

218



ASTM D 86

ASTM D 86

Flash Point °C 60 65 63 ASTM D 93
Mixed Aniline Point °C 12 14 13 ASTM D 611
Aromatic Content Wt% 99.0 99.0 GC
Appearance Clear colorless free from foreign particles Visual
Color APHA +24
Specific Gravity @ 15°C 0.900 0.910 0.904 ASTM D 4052

Packaging of Solvent Naphtha and Other Petrochemicals Products

The solvents are packed in bulk, drums, tanks, cans, etc.

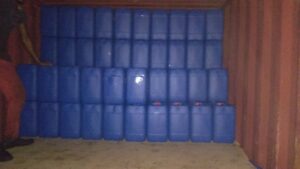

20 Litres Jerry Cans

20 Litres Jerry Cans

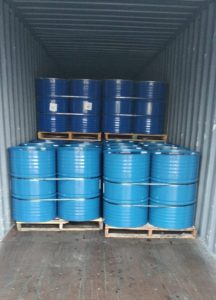

Drum Packing

Drum Packing
