“DANA STEEL PROCESSING INDUSTRY LLC”[Est. 2001 – www.danasteeluae.com ] is a quality manufacturer of insulated sandwich profiled panels, sandwich panels , drywall partition metal profiles , profiled cladding sheets (single skin), secondary structural members like C and Z purlins and all kind of accessories in the middle east. With Head quarters in Dubai & manufacturing facilities in Dubai, Ajman & UAQ, it is a key player in the region, DANA is recognized with the high quality and professional services provided. We are the only Vertically Integrated manufacturer in the middle east to manufacture all our value added metal & steel products from Steel & Aluminum Mill Finish and Color Painted Coils [Galvanized(GI) , Pre painted Galvanized ( PPGI) , Aluzinc ( AZ) , Pre painted Aluzinc ( PPAZ) , Pre painted Aluminum ( PPAL) ] at our own state of art manufacturing facility in Dubai Industrial city , Dubai .

dana steel manufacturer of metal steel aluminum coils and sheets

The Company employs a team of highly skilled and experienced professionals to maintain the highest level of Quality control procedures as well as the health and safety policies resulting in high quality products and ensuring complete customer satisfaction. With its extensive experience, the company is in a unique position to offer the clients comprehensive and tailored solutions for their above requirements. Needless to mention the goodwill of the firm which is enjoying an evergrowing market share in the middle-east and north African region.Some of the countries where our products are proudly exported to are SaudiArabia(Dammam, Jeddah, Riyadh, Dahran, Jubail, Yanbu), Kuwait, Bahrain(Manama), Oman(Muscat, Sohar,Seeb), Nigeria, Kenya, Uganda, Mauritius, Africa, Morocco, Algeria, Jordan, Burundi, Comoros, Djibouti, Ethiopia, Kenya, Madagascar, Mauritius, Rwanda, Seychelles, Somalia, Tanzania Rep and Uganda. Besides the above,we also have a strong market presence in the West African Region:: Sierra Leone / Gambia / Senegal / Ghana / Mauritania/Chad/ Liberia / Sao Tome / Congo and the South African Region :: South Africa / Mozambique / Malawi / Zimbabwe / Zambia / Angola / Dr Congo.

The main product lines DANA offer include various types of insulated profiled sandwich panels, profiled cladding sheets, secondary structural members, Wall Cladding Sheets, Roof Cladding Sheets, Metal Roof Ridge Caps , Metal Roof Flashing , Metal roof Flashing Products , Roof Gutters,Curved Cladding Sheets, Crimped sheets, Eave Flashings, Gutters, Flashing Sheets, Sandwich Panels, Flat Panels and Cold Store Panels and all kind of accessories. DANA Sandwich panels are produced in any customized length up to 14 meters and suit any structural requirements as specified by engineers due to various materials specifications, customized lengths ,availability of colors and core insulation material properties to meet the design U and K values, and fire class specifications.

Metal Roofing Accessories , Metal roof Flashing , MEtal Roof Ridge Caps , Roofing Store , Corrugated sheets , Sandwich Panels

DOWNLOAD COMPLETE DANA PROFILES & CLADDING PRODUCT CATALOG [PDF]

ASK FOR A QUOTE.CALL NOW AT 00971507983153

For Oman Inquiries Contact our Oman branch now- 0096891781730

DANA SINGLE SKIN CORRUGATED PROFILE SHEETS

DANA PROFILES :- DSS 35/200 | DSS 45/250 | DSS 45/150 | DTP 42/205(tile profile) | DSS 30/255
MATERIAL FINISH:- Pre-painted(PP) finish in Aluminum(PPAL), Alu-zinc(PPGL) and GI steel(PPGI).Mill Finish(MF) is also available
THICKNESS RANGE:- Pre-painted(PP) finish in Aluminum(PPAL) – [0.40mm – 2.0mm], Alu-zinc(PPGL) – [0.30mm-0.90mm] and GI steel(PPGI) – [0.30mm-0.90mm] .Mill Finish(MF) is also available in all of the above

Our Steel Fencing Division also manufactures Metal Fence Hoarding Panels from Single Skin Corrugated Profile Sheets.More Details can be found here –> http://danasteeluae.com/discontinuous-corrugated-steel-hoarding/.

00971507983153

INSULATED SANDWICH PANELS

We are manufacturing both Corrugated sandwich Panels for usage in wall/roof & Flat sandwich panels for usage in wall/roof, with variable raw material finishes as outlined below :-

Corrugated Cladding sheet:- Pre-painted(PP) finish in Aluminum(PPAL), Alu-zinc(PPGL) and GI steel(PPGI).Mill Finish(MF) is also available
Bottom Liner sheet:-Pre-painted(PP) finish in Aluminum(PPAL), Alu-zinc(PPGL) and GI steel(PPGI) or aluminum foil backed craft paper(AF).Mill Finish(MF) is also available.
Insulation Material:-PUF – Polyurethane foam (B2|B3) ,Polyisocyanurate(PIR),Expanded Polystyrene(EPS),Rock wool/Mineral Wool in Thicknesses 40mm,50 mm,75mm,100mm ,125mm and 150 mm.

DANA SANDWICH PANEL – DCP 35 / 200

Specifications:-

Aluminium profiled sheet is 0.40 mm. up to 1.0 mm. thick Alloy A3105 – H16 Temper is supplied as standard.However different Alloys like ( 3003, 3013, 4343, 4045, 5052, 5086, 6061, 8011 etc) & Tempers (H12, H14, H16, H18, H20, H22, H24, H32, H34, H36, H38 etc)can be supplied on request.
Galvanized (GI) & Alu Zinc(AZ) coated steel profile sheets 0.30 to 0.90 mm thick as per ASTM A 653 for GI & ASTM A 792 for Alu Zinc – Alternative grades Can be supplied on client request
The Surface is painted with baked regular modified enamel polyester(RMP), with 5 micron primer and 20 micron coat on the weathering side and 5/7 micron primer on the reverse – PVDF, Silicon, Modified Polyester, Platisol & special coatings are available on client request.

DANA SANDWICH PANEL – DCP 45 / 250

Specification :-

Aluminium profiled sheet is 0.40 mm. up to 1.0 mm. thick Alloy A3105 – H16 Temper is supplied as standard.However different Alloys like ( 3003,3013,4343,4045, 5052,5086,6061, 8011 etc) & Tempers (H12, H14, H16, H18, H20, H22, H24, H32, H34, H36, H38 etc)can be supplied on request.
Galvanized (GI) & Alu Zinc(AZ) coated steel profile sheets 0.30 to 0.90 mm thick as per ASTM A 653 for GI & ASTM A 792 for Alu Zinc – Alternative grades Can be supplied on client request
The Surface is painted with baked regular modified enamel polyester(RMP), with 5 micron primer and 20 micron coat on the weathering side and 5/7 micron primer on the reverse – PVDF, Silicon, Modified Polyester, Platisol & special coatings are available on client request.

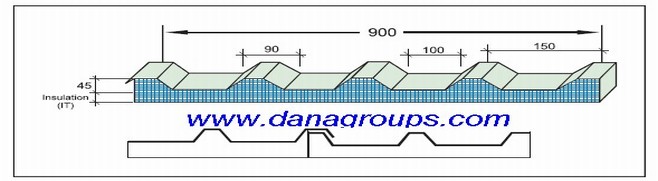

DANA SANDWICH PANEL – DCP 45 / 150

Specification :-

Aluminium profiled sheet is 0.40 mm. up to 1.0 mm. thick Alloy A3105 – H16 Temper is supplied as standard.However different Alloys like ( 3003,3013,4343,4045, 5052,5086,6061, 8011 etc) & Tempers (H12, H14, H16, H18, H20, H22, H24, H32, H34, H36, H38 etc)can be supplied on request.
Galvanized (GI) & Alu Zinc(AZ) coated steel profile sheets 0.30 to 0.90 mm thick as per ASTM A 653 for GI & ASTM A 792 for Alu Zinc – Alternative grades Can be supplied on client request
The Surface is painted with baked regular modified enamel polyester(RMP), with 5 micron primer and 20 micron coat on the weathering side and 5/7 micron primer on the reverse – PVDF, Silicon, Modified Polyester, Platisol & special coatings are available on client request.

sandwich panel insulated puf panels uae oman saudi arabia kuwait bahrain

SECONDARY STEEL MEMBERS – COLD FORMED “Z” & “C” PURLINS

DANA Z & C purlins are designed as secondary beam supports for roofing and cladding sheets, insulated panels and liner trays, for spans up to 10.0m. These purlins can be joined employing the overlap or sleeved system.We have a fully automatic production line for making holes/slots as per customer’s drawings.

The metal thickness varies from 1.5mm to 3.0 mm. Sleeves are used to join purlin above frames, where as 6 to 8 mm cleats and 16mm bolts are usually used to connect this profile to building frames.

The section reference of a Z-Section 202mm deep and 2.5mm thick=202 Z25. The first three digits of section reference indicate the depth of the section in millimeters (ie: 202 equals 202mm depth). The fourth digit is a letter that signifies the profile type(i.e: Z for Z profile & C for C profile). The last two digits indicate the material thickness ( i.e: 25 equals 2.5mm).

Specification :-
ASTM A653 Grade 50 (New ASTM Standard)
ASTM A446 Grade ‘D’ G90 (Old ASTM Standard)
EN 10147 S350GD Z275 MAC

DANA COMPOSITE FLOOR DECKING SYSTEM – DSD 45/150 & DSD 75/305

The DANA composite floor decking sheets ( DSD 75/305 & DSD 45/150) offers the ultimate in lightweight steel decking for all multi-rise buildings including car parks,hangars. It combines exceptional spanning capabilities with reduced concrete usage to provide a cost-effective and attractive floor solution that’s easy to install.
DANA ROOF/FLOOR DECKING PROFILE DSD 45/150

These profiles have been developed using roll-forming techniques pioneered by DANA Steel, drawing on our years of experience in designing advanced composite floor decking systems.

DANA ROOF/FLOOR DECKING PROFILE DSD 75/305

Engineered with optional closed ends, DANA DSD 75/305 [upto 1.60mm thickness] & DSD 45/150 decking sheet profile provides excellent acoustic performance and fire protection, with no requirement for filler blocks.
Its profile has been specially designed with trough stiffeners and side laps positioned to
guarantee centrally placed shear studs.The covering width is 914mm(DSD 75/305) & 900mm(DSD 45/150) , creating lightweight sheets that are easy to handle – delivering significant on-site safety benefits.

DANA Composite decking sheets[DSD 75/305] & [DSD 45/150] are available in Galvanized/Galvalume Steel /Prepainted Galvanized Steel,Grade 50[Min 340 Mpa] & Grade 80 steel[Min 550 Mpa].

Long-span capability
Optimised profile design gives exceptional unpropped spanning capability of up to 5.5
metres, reducing structural steel requirements and hence cost.

Reduced concrete usage
DANA decking profile requires a reduced concrete volume for any slab depth, providing a
more sustainable solution and reducing costs.

Enhanced shear-stud interaction
Profile design guarantees central shear-stud positioning to optimise composite action,
reducing the need for on-site checking.

Excellent acoustic and fire performance
Manufactured with closed ends to give exceptional fire protection and acoustic performance,while simplifying installation.
